52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring

Model Number : U1 U2 U3

Design : Simple And Sturdy

MOQ : 27.5 Meters

Delivery Time : 10-45 Days

Certificate : ABS,BV,DNVGL,KR,LR,NK,RINA,CCS,PRS,IRS,RS,CRS Certificated

Payment Terms : T/T,Western Union,L/C,MoneyGram,D/A,D/P

Type Number : U1 U2 U3

Color : Black/Red/Yellow Or Customer Demand

Supply Ability : 15000 Metric Ton/Metric Tons Per Year

Product Name : Marine Anchor Chain

Surface Finishing : Polished,Spray Paint,Galvanized

Certification : CCS.ABS.LRS.BV.GL.DNV.NK.RMRS

Place of Origin : China

Price : USD 800~1200 PER PIECE

Material : High - Strength Alloy Steel/Stainless Steel/Carbon Steel

Brand Name : JC Maritime

Port Of Loading : Qingdao, China

Packaging Details : 1. Bare packed: packed in bundles 2. Packed in iron drums then on pallets 3. Packed in woodencase 4. Required by cllent shipping

Contact Now

52mm Spray Paint Stud Link Marine Mooring Chain U1 U2 U3
This high-performance steel forging marine mooring & anchor chain features black coating and is available in both stud and studless link types. Professionally engineered for marine anchoring and mooring systems of various vessels and offshore facilities, it offers excellent structural strength, seawater corrosion resistance, and load-bearing capacity, fully compliant with international marine classification society standards.
Material Advantages
Manufactured from high-quality marine special alloy steel round bar, primarily CM490 (U2 grade). The steel forging process optimizes internal metal structure, eliminating internal stress and significantly improving the chain's tensile, impact, and fatigue resistance.
Chain Types

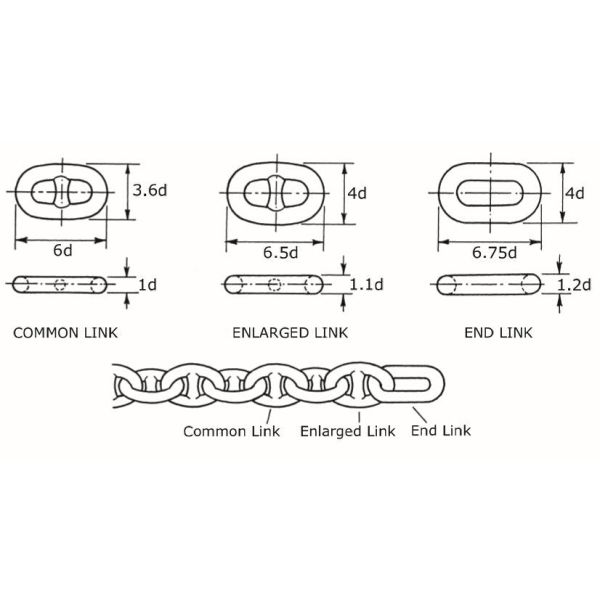

Stud Link Type: Features internal reinforcing studs for stable structure that resists deformation, suitable for heavy load anchoring of large ships and offshore engineering. Nominal diameter range: 12.5mm - 120mm.
Studless Link Type: Lighter weight without internal studs, easy to match with large shackles, avoiding stud loosening faults. Nominal diameter range: 12.5mm - 70mm, ideal for medium and small vessels.
52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring

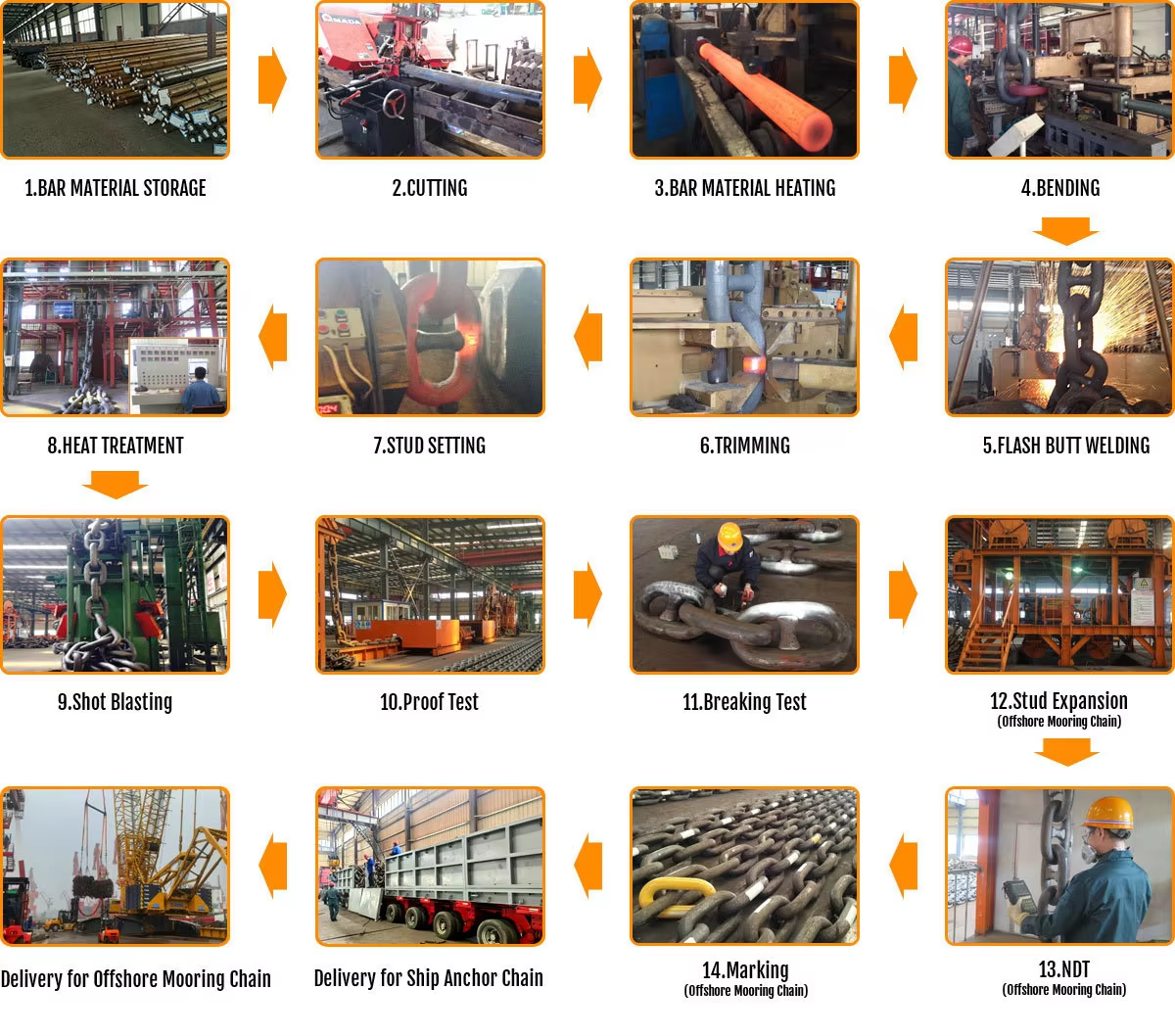

Manufacturing Process
  • Raw Material Preparation: Selection of low-carbon steel wire rod with surface treatment to remove impurities
  • Chain Forming and Welding: Specialized chain braiding equipment with flash butt welding and shaping
  • Heat Treatment: Overall tempering treatment to eliminate welding stress and improve tensile strength
  • Hot-Dip Galvanizing: Immersion in molten zinc at 440-460℃ for uniform corrosion protection coating
  • Final Inspection: Comprehensive quality control including zinc layer adhesion and dimensional verification
52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring 52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring
Product Features
  • Exceptional Strength: High-strength alloy steel construction withstands extreme pulling forces in harsh sea conditions
  • Strong Corrosion Resistance: Special painting process combined with alloy steel provides dual protection against seawater
  • Excellent Toughness: Flexible bending capability effectively cushions impact forces and reduces stress concentration
  • Precise Craftsmanship: Advanced manufacturing ensures precise dimensions and firm welding for consistent performance
  • Aesthetic Appearance: Even paint application enhances both protection and visual appeal
Technical Parameters
Parameter Specification
Chain Diameter 12mm to 150mm (customizable based on vessel requirements)
Link Pitch Strictly compliant with standard ratios for uniform force distribution
Length Standard lengths: 25m, 50m, 100m per section (custom lengths available)
Surface Treatment Hot-dip galvanizing (zinc coating thickness ≥85μm) with optional epoxy coating
52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring
Applications
  • Ocean-Going Cargo Ships: Ensures stable berthing in complex sea conditions for safe goods transportation
  • Oil Exploration Platforms: Provides firm fixation in deep sea environments for oil exploration operations
  • Marine Rescue Vessels: Wear-resistant and highly reliable support for emergency rescue missions
  • Sightseeing Yachts: Enables smooth docking with good flexibility and sufficient gripping force
Certification & Load Performance
Certifications: CCS, ABS, BV, DNV-GL, LR, NK, KR, RINA, IRS
U2 Grade: Proof load 41.2KN-1280KN, Breaking load 82.6KN-2560KN
U3 Grade: Proof load 56.4KN-1810KN, Breaking load 112.8KN-3620KN
Standard Weight: 85.41kg-1032kg per 27.5m section
52mm Spray Paint Stud Link Marine Anchor Chain U1 U2 U3 Grade for Mooring
Customization & After-Sales Service
We support non-standard customization of diameter, length, grade, and surface treatment. Free product samples available (freight collect) with 12-hour quick response to inquiries.
Delivery cycle: 15-30 days for regular orders, customizable production plans for bulk orders. FOB Qingdao port available with T/T, L/C at sight payment terms.
Contact Us
Any questions? JinCheng Maritime provides 24/7 service and support.
